typical application
Suitable for conventional fluid transportation, pharmaceutical industry, fine chemical industry, water treatment, environmental protection engineering, food and beverage production agent
Additives, supplementary acid and alkali in the process fermentation system, defoaming, scientific experiment and many other general fields
main feature
Industrial plastic enclosure
Large screen LCD display
Digital knob + mask button adjustment
Two modes of distribution and flow
Wide voltage power input
One-key quick filling and sucking back
Power-down memory
Suitable for conventional fluid transportation, pharmaceutical industry, fine chemical industry, water treatment, environmental protection engineering, food and beverage production agent
Additives, supplementary acid and alkali in the process fermentation system, defoaming, scientific experiment and many other general fields
main feature
Industrial plastic enclosure
Large screen LCD display
Digital knob + mask button adjustment
Two modes of distribution and flow
Wide voltage power input
One-key quick filling and sucking back
Power-down memory

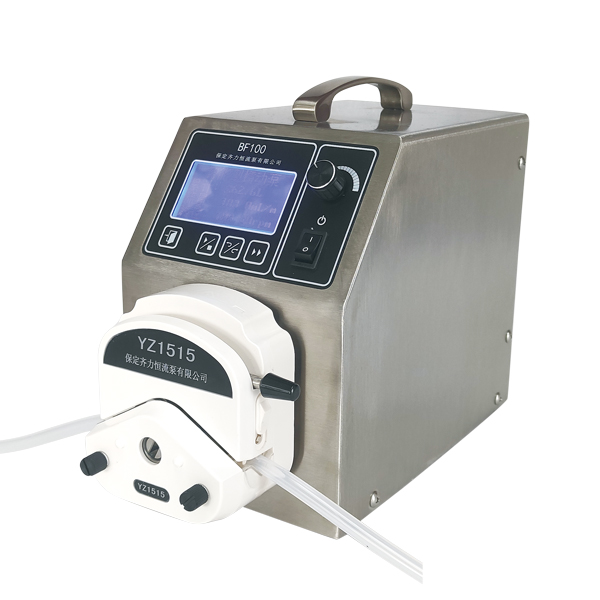

| Technical index of peristaltic pump BF100 | |||
| range of rotation | 1～100rpm,Reversible | Speed resolution | 0.1rpm |
| Adjustment method | Continuous adjustment of rotary encoder | Display method | 128*32 type graphic dot matrix liquid crystal display |
| Number of allocations | 1～9999次，"0" is infinite loop | Dispensed liquid volume | 0.01mL～9.99L |
| time interval | 0.1 second to 99.9 minutes | Suck back time | 0～99.9秒 |
| Communication Interface | RS485 | Power consumption | ＜40 W |
| External control interface | Start-stop control, direction control, speed control (0～5V, 0～10V, 4～20mA, 0～10KHz optional) | Applicable power supply | AC 90-264V±10%,50Hz/60Hz |
| working environment | Temperature 0～40℃, relative humidity <80% | Drive size (L×W×H) | 202×160×239(mm) |
| Drive weight | 3.4kg | Protection level | IP31 |
| Other parameters of peristaltic pump BF100 | |||
| Drive model | Applicable pump head | Applicable hose | Flow range (ml/min) |
| BF100 | YZ1515 | 13#14#16#19#25#17#18# | 0.007 - 380 |
| YZ2515 | 15#24# | 0.17 - 270 | |
| DG-(4、6、8、12)6 rollers |
Wall thickness 0.8-1mm Inner diameter≤3.17mm |
Single tube 0.0025-48 | |
