It is suitable for many general fields such as conventional fluid transportation, pharmaceutical industry, fine chemicals, water treatment, environmental protection engineering, food and beverage production dosage additives, process fermentation system for acid supplementation and alkali defoaming, scientific experiments, etc.
main feature
It can provide a flow range of 0.002-25mL/min.
Rotation speed can be adjusted by membrane button, or automatically through external control interface control.
It can cooperate with the sub-packing controller to realize the filling function.
This machine has a power-down memory function, and the full speed key can be used for emptying and filling.
Beautiful appearance, small size, convenient installation, simple and intuitive operation.

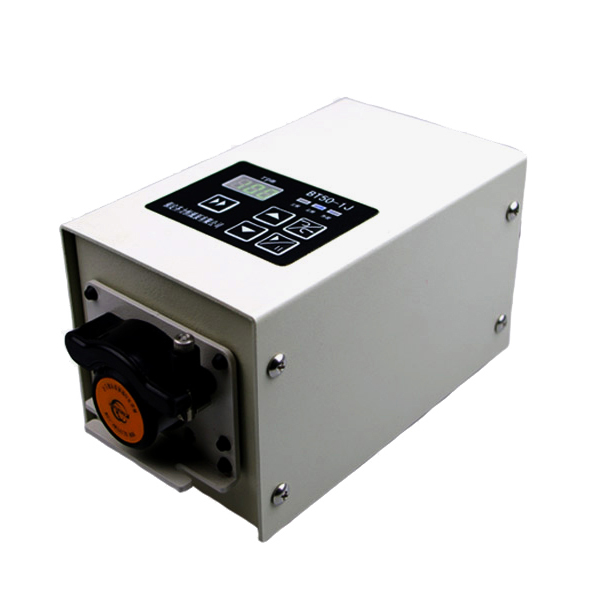

| Technical index of BT50-1J peristaltic pump: | |||
| range of rotation | 0.1-50rpm | Speed resolution | 0.1rpm |
| Speed adjustment method | Film button adjustment | Power consumption | ＜12W |
| motor | 42 stepper motor | Display function | 3-digit LED displays the current speed |
| Applicable power supply | AC 220V±10% 50/60Hz | Dimensions | 198x109x111(mm) |
| working environment | Ambient temperature 0～40℃, relative humidity <80% | Drive weight | 1.7kg |
| BT50-1J peristaltic pump flow parameters | ||||
| Drive model | Applicable pump head | Applicable hose | Reference flow range (ml/min) | Number of channels |
| BT50-1J | JY10-14 | Wall thickness≤1mm, inner diameter≤3.17mm | 0.0025-25 | 1 |
| JY10-18 | Wall thickness≤1mm, inner diameter≤3.17mm | 0.004-16 | 1 | |
