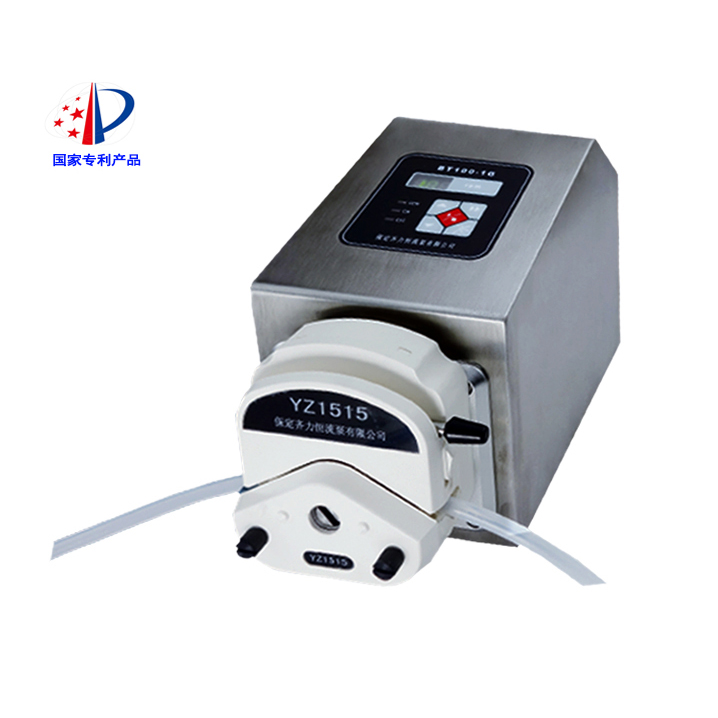

A product with high protection level and high efficiency, suitable for the harsh production environment, suitable for high dust, high humidity industrial occasions to transfer liquids.
main feature
The stepping motor is subdivided and driven, with high precision and stable operation.
The stainless steel case, black film buttons, and green digital display are unique and have a wider range of applications.
The 3-digit LED digital tube displays the current speed, which is simple, intuitive and clear at a glance.
The membrane button adjusts the speed, direction, start/stop, and the operation is simple and convenient; there is also a full-speedbutton for quick filling or emptying.
With power-down memory function, power-on again after power-off, work according to the state before power-off.
It can communicate with PC through RS485, and our company can provide test software and communication protocol for free.
It can be used with optional accessories to realize small batch filling and distribution; accessories include time distributor, foot switch, contact control module, etc.
You can consult our company for special requirements.
| BT100-1G technical indicators: | |||
| range of rotation | 0.1～100 rpm | Communication function | RS485 communication function (MODBUS protocol) |
| Speed resolution | 0.1 rpm | Applicable power supply | Wide voltage AC 100-240V 50Hz/60Hz |
| Display method | 3-digit LED digital tube displays the current speed | working environment | Ambient temperature 0～40℃, relative humidity <80% |
| Adjustment method | Membrane buttons adjust speed, direction, start/stop, full speed | Power consumption | ＜30W |
| Power-down memory | After power on again, continue to run according to the state before power off | Dimensions (L×W×H) | 232×140×175（mm） |
| External control function | Input switch signal input to control start and stop, direction; input 0-5V, 0-10V, 4-20mA, 0-10KHz signal to control speed; | Protection level | IP65 |
| Drive weight | 3.0kg(Excluding pump head) | ||
| BT100-1G flow parameters | ||||
| Drive model | Applicable pump head | Applicable hose | Reference flow range (ml/min) | Number of channels |
| BT100-1G | YZ1515 | 13# 14# 16# 19# 17# 18# 25# | 0.007-380 | 1 |
| YZ2515 | 15# 24# | 0.17-270 | 1 | |
| DG-(1、2、4)6Scroll wheel |
Wall thickness 0.8-1m Inner diameter≤3.17mmm |
Single channel 0.0025-48 | 1、2、4 | |
| DG-(1、2、4)10Scroll wheel |
Wall thickness 0.8-1m Inner diameter≤3.17mmm |
Single channel 0.002-32 | 1、2、4 | |
