Location：Home>Products>Peristaltic pump head

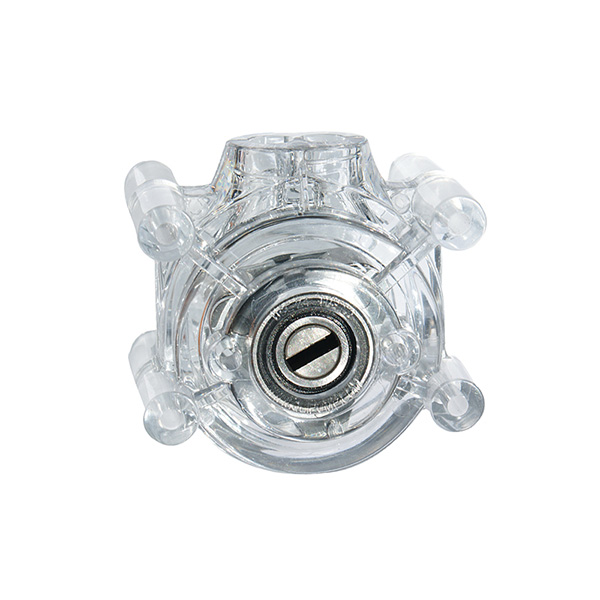

BZ series pump head

The pump head roller of the peristaltic pump is made of stainless steel or PET TX material, and the shell is made of PC material. It is crystal clear, and the transparent shell is easy to observe the operation of the pump.

Flow range：Maximum: 1600ml/min

Maximum number of channels：

Tel：0312-3332188 0312-6776688 Online communication

Introduction

Parameter

Guide

video

Functional characteristics of BZ series peristaltic pump head

BZ25/BZ15-16 standard peristaltic pump pump head roller is made of stainless steel or PET TX material, and the shell is made of PC material, which is crystal clear and clear at a glance. The transparent shell is easy to observe the operation of the pump. It runs smoothly and can be used in series; the pump head has a compact structure and a simple design; the pump head must be removed from the driver when the hose is installed; the standard pump head has a fixed pressure tube gap, which is convenient for OEM applications.

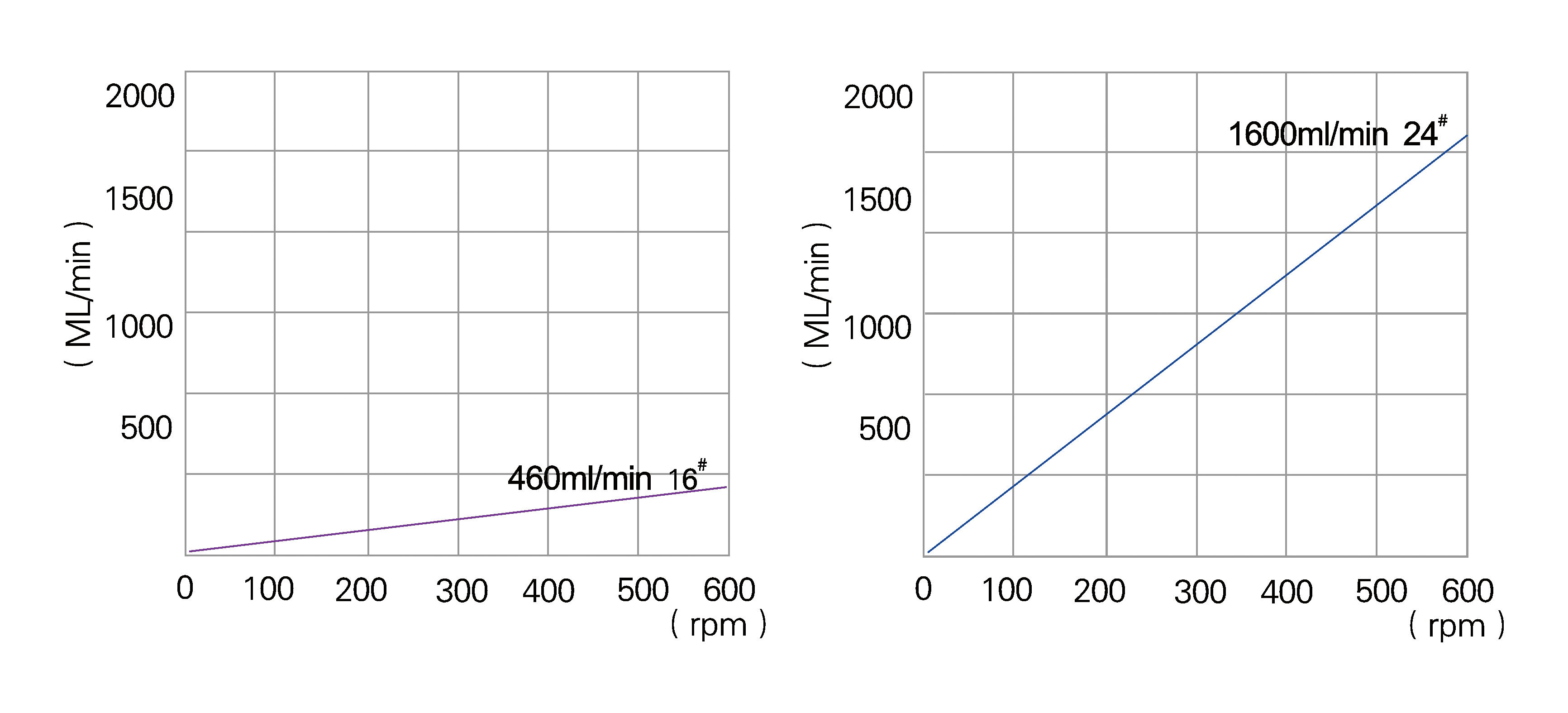

model	Reference flow (mL/min)	range of rotation (rpm)	Applicable hose	Number of rollers	weight(kg)
BZ15-16	460	≤600	16#	3	0.31
BZ25	1600	≤600	24#	3	0.31

Prev：No more！

Next：DG series pump head
