Location：Home>Products>Peristaltic pump head

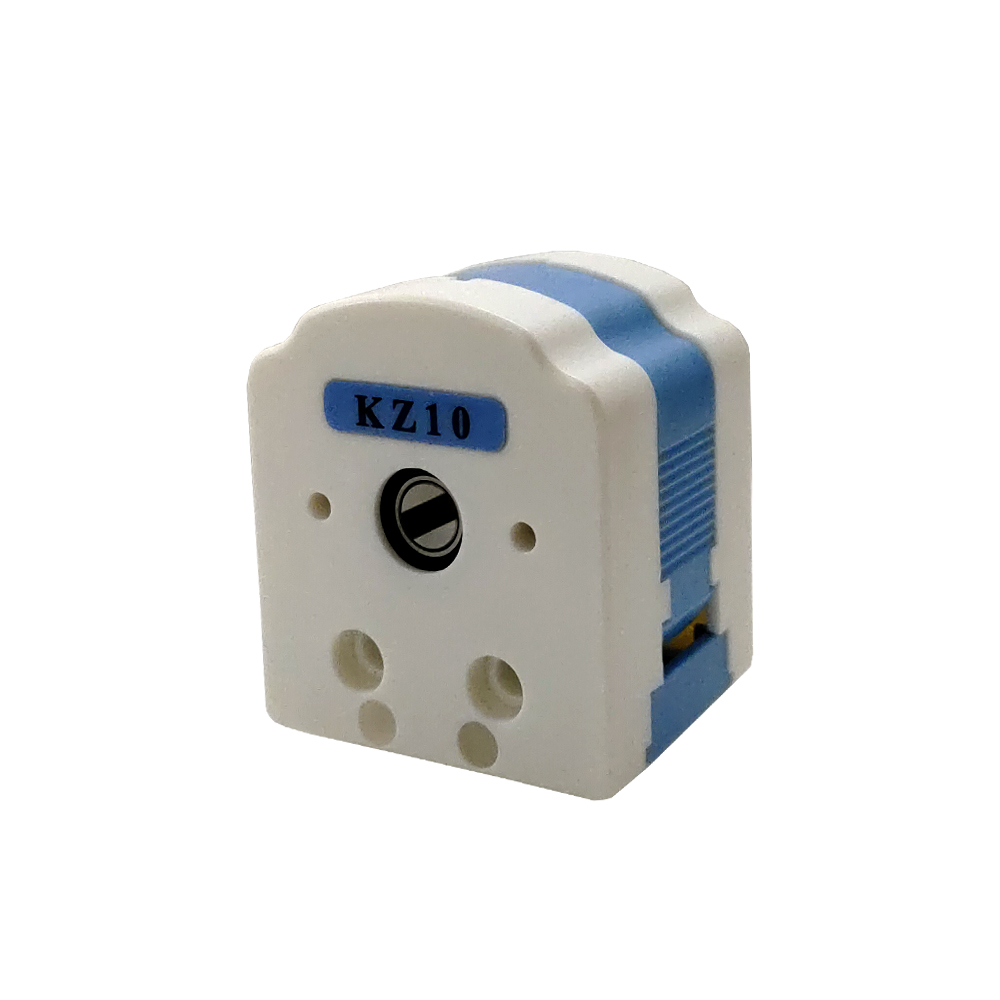

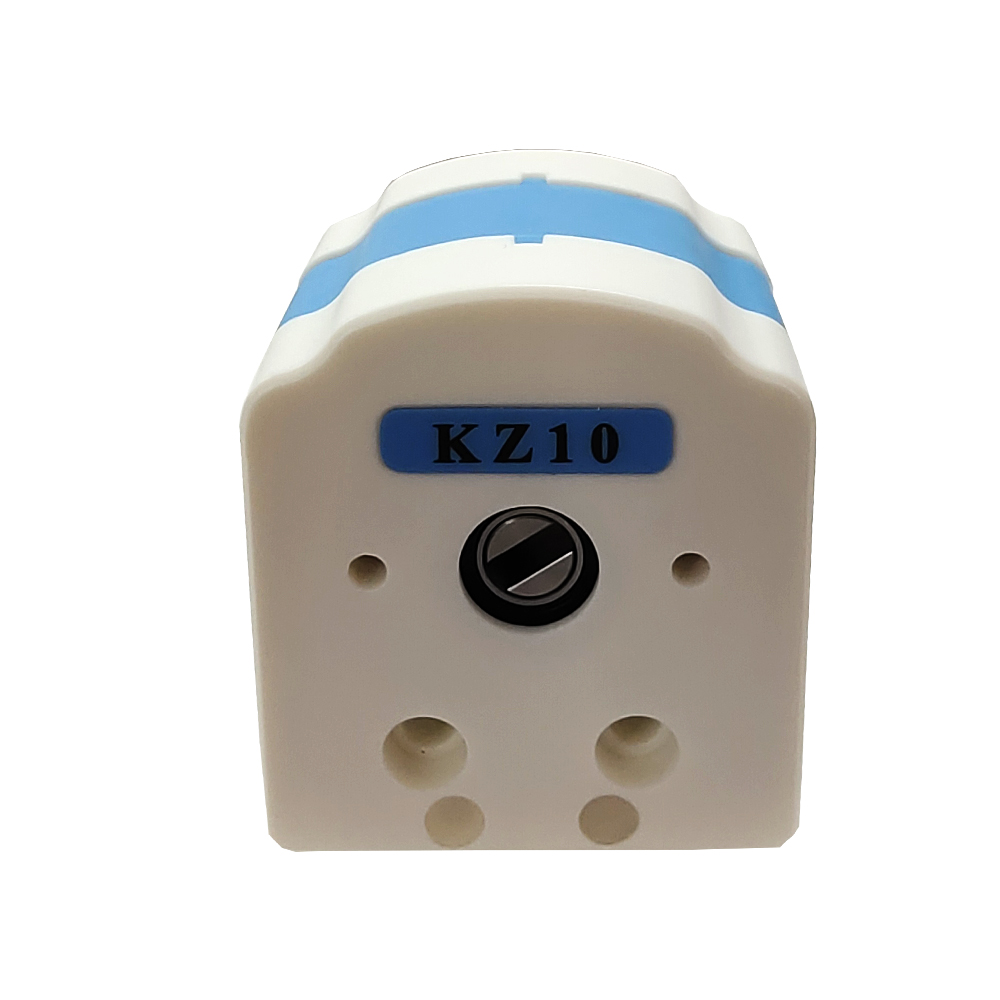

KZ10/15 pump head

KZ10/KZ15 series pump head has compact structure and small volume. It is suitable for supporting use of OEM products and can be cascaded with multiple pump heads to save equipment space. The quick-fit structure is convenient and quick to replace the hose.

Flow range：0.002-184ml/min

Maximum number of channels：Single pump head with 2 channels, and multiple pump heads can be connected in series

Tel：0312-3332188 0312-6776688 Online communication

Introduction

Parameter

Guide

video

KZ10/KZ15 series pump head has compact structure and small volume.
It is suitable for supporting use of OEM products and can be cascaded with multiple pump heads to save equipment space.

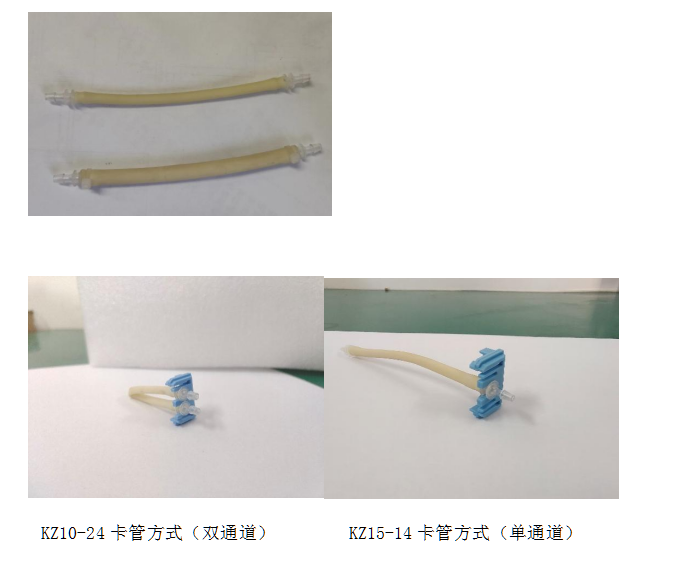

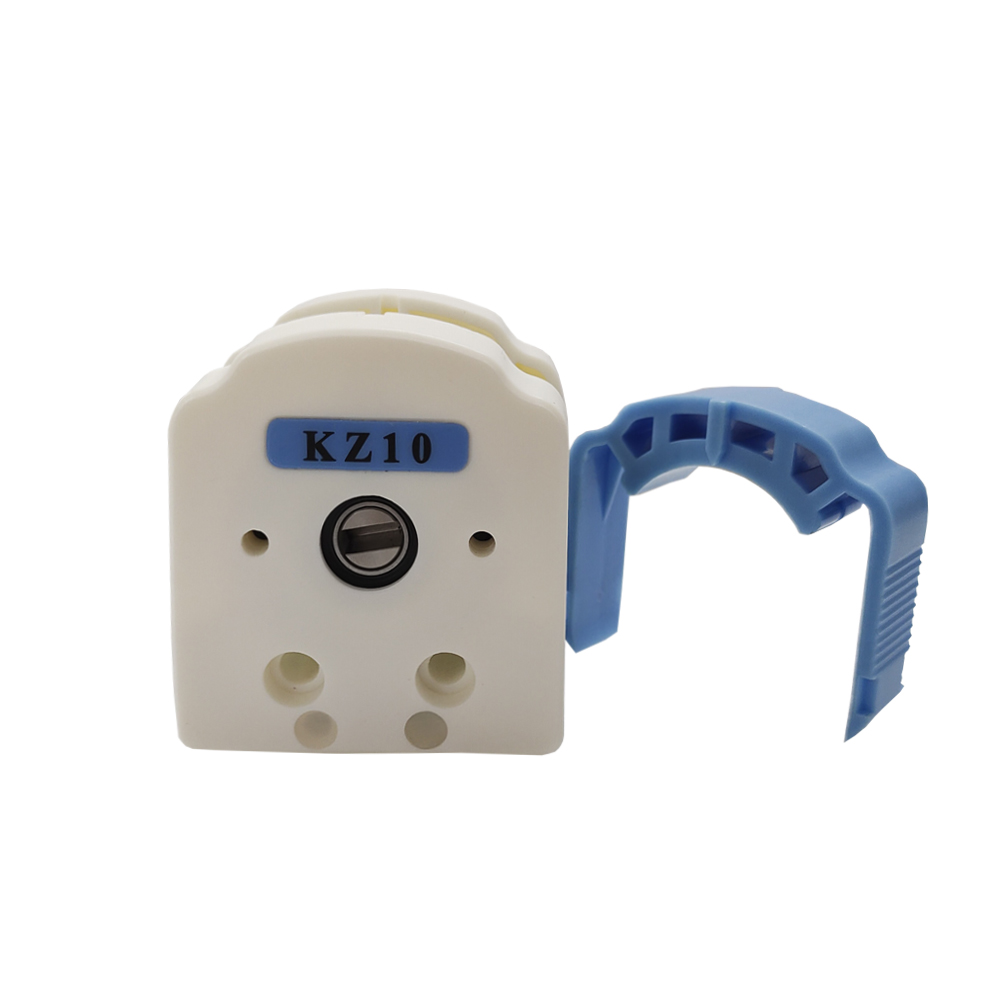

The quick-fit structure is convenient and quick to replace the hose.

Product model	Spindle type	Number of channels	Number of rollers	Speed range（rpm）	Applicable hose specification	Maximum reference flow of single channel（ml/min）	weight（g）
KZ10-14C	the major axis	1	4	≤450	bore size≤3.17mm	150	90
KZ10-24C	the major axis	2			wall thickness0.86-1mm
KZ10-14D	minor axis	1
KZ10-24D	minor axis	2
KZ15-14C	the major axis	1			13#、14#、19#、16#	184
KZ15-14D	minor axis	1			13#、14#、19#、16#	184
