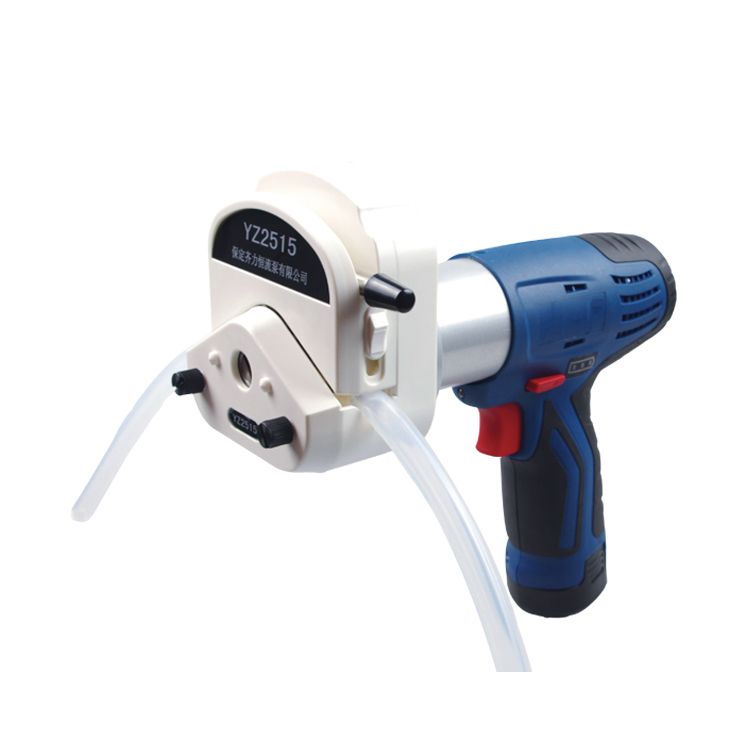

The hand-held peristaltic sampling pump is small in size and easy to carry. Specially designed for field sampling, suitable for environmental monitoring stations, water treatment, gas and liquid stratified sampling, collection of medical grade specimens and other fields.
main feature
The sampling flow range of the hand-held sampling pump is less than or equal to 2.0L/min.
It can be sampled in the field, online monitoring and sampling, etc., and there is no cross-contamination in the sampling.
Rechargeable power supply, charging AC 220-240V 50/60Hz, and with a 12V lithium battery, the charging time is short.
It can collect high specific gravity and high viscosity liquid, solid particle suspension liquid, layered sampling, etc.
It can be equipped with easy-to-install pump head, which is easy to operate and clean.
| range of rotation | 0-700rpm | working environment | Field, indoor |
| Dimensions | 長237*寬119*高230 | Applicable power supply | Charging select AC220-240V 50/60Hz |
| Total Weight | 1.5Kg | Maximum suction | 8m (the depth under the water is not limited, the depth is determined by the length of the pump tube) |
| Protection level | IP31 |
| Pump head | hose | Flow range | ||
| YZ2515 | 15# (Inner diameter 4.8mm×Wall thickness 2.4) | 0~1120ml/min | ||
| 24# (Inner diameter 6.4mm×wall thickness 2.4) | 0~2030ml/min | |||
