Product Introduction

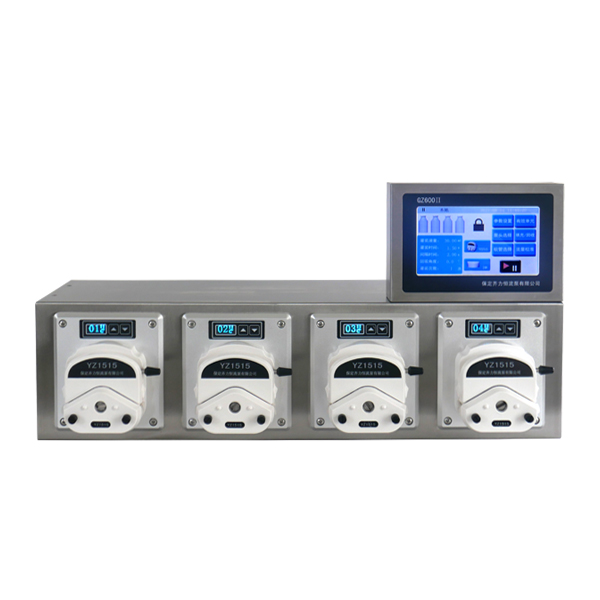

Qili peristaltic filling machine GZ600 peristaltic pump filling system adopts industrial-grade color touch LCD screen control, animation + data display filling status; can expand multiple groups of filling units, set the effectiveness of filling units arbitrarily, and have liquid volume correction Function, a wide range of filling liquid volume, minimum 0.1ml can be filled, flow range: 0.07-2280ml/min, filling accuracy can reach 0.5%-1%, suitable for a variety of pump head filling: YZ1515, YZ2515, BZ15, BZ25.
Main functions and features
◆Driven by stepping motor, the working status of the filling unit can be inquired in real time.
◆Integrated design, one controller can control 4 groups (16) filling units.
◆The 304 stainless steel chassis meets the GMP certification requirements of the pharmaceutical factory, and uses seamless welding technology to avoid accidental spills.
◆The liquid on the surface of the chassis leaks into the chassis to protect the internal circuit.
◆It can store up to 60 regular filling modes, which saves the time for users to set parameters and improves work efficiency.
◆With the output signal of the motor running status, it can be used for other equipment to monitor the current filling status of the peristaltic pump in real time.
◆Pay attention to user experience.
Qili peristaltic filling machine GZ600 peristaltic pump filling system adopts industrial-grade color touch LCD screen control, animation + data display filling status; can expand multiple groups of filling units, set the effectiveness of filling units arbitrarily, and have liquid volume correction Function, a wide range of filling liquid volume, minimum 0.1ml can be filled, flow range: 0.07-2280ml/min, filling accuracy can reach 0.5%-1%, suitable for a variety of pump head filling: YZ1515, YZ2515, BZ15, BZ25.
Main functions and features
◆Driven by stepping motor, the working status of the filling unit can be inquired in real time.
◆Integrated design, one controller can control 4 groups (16) filling units.
◆The 304 stainless steel chassis meets the GMP certification requirements of the pharmaceutical factory, and uses seamless welding technology to avoid accidental spills.
◆The liquid on the surface of the chassis leaks into the chassis to protect the internal circuit.
◆It can store up to 60 regular filling modes, which saves the time for users to set parameters and improves work efficiency.
◆With the output signal of the motor running status, it can be used for other equipment to monitor the current filling status of the peristaltic pump in real time.
◆Pay attention to user experience.
| Filling liquid volume range | 0.1-9999.99mL | Power consumption | <200W(Single group） |
| Filling time range | 0.1-9999.99s | ||
| Interval time range | 0.1-9999.99s | temperature | 0-40℃ |
| Liquid volume resolution | 0.01mL | Relative humidity | <80% |

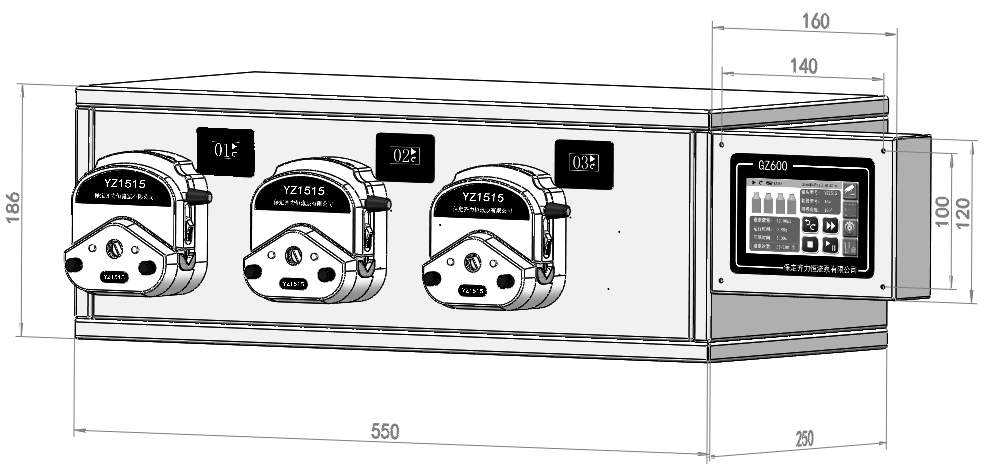

| Time resolution | 0.01s | Size (mm) | Drive: 663*219.5*176.5 (single group) |
| Filling frequency range | 1-9999 times, 0 means unlimited times | ||
| range of rotation | 0.01-600rpm | Controller: 220*150*50 | |
| Suction angle | 0-360° | weight | Drive: 14.0kg (single group) |
| External control method | Switch signal | Controller: 1.5kg | |
| Protection level | IP31 |
