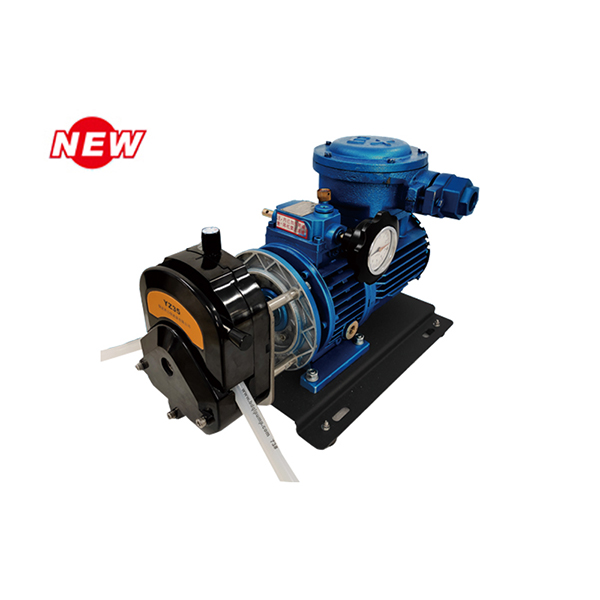

        Industrial explosion-proof pump FB600S-02

        Stepless speed changer, the speed can be adjusted manually. Reliable performance, stable flow, large torque, low noise, suitable for a variety of pump heads and hoses. Can run continuously for a long time, simple maintenance

        Flow range:Flow rate: 19.6-12000ml/min

        Maximum number of channels:Maximum number of channels: 2 channels

        Introduction

        Parameter

        Guide

        video

        Main features:

        Safety explosion-proof is suitable for occasions with electric hazards.

        Equipped with a stepless speed changer, the speed can be adjusted manually. Reliable performance, stable flow, large torque, low noise, suitable for a variety of pump heads and hoses.

        Can run continuously for a long time, simple maintenance

        Large flow design is suitable for operation at 180-600rpm

        Motor explosion-proof grade: ExdIIBT4.

        ▲When two pump heads are installed, after the outlets of the two channels are combined, the flow can be doubled, the pulse amplitude can be doubled, and the fluid delivery will be more stable.
        Speed range 280-600rpm forward and reverse reversible Flow range 19.6-12000 mL/min
        Applicable power supply AC 380V Speed regulation method Manual stepless speed regulation
        Working environment Temperature 0-40℃, humidity <80% Dimensions 424 x 250 x 309(mm)
        Drive weight 30kg Protection level IP31
        Motor explosion-proof grade ExdIIBT4 Motor fan power supply AC 380
        Drive Applicable pump head Applicable hose Maximum reference flow range Number of channels
        FB600S-02
        YZ35 73#82# 2800-12000 1
        KZ25 15#24#35#36# 單通道843-6000 1
        YZ1515 13# 14# 19# 16# 25# 17# 18# 單通道19.6-2280 N
        YZ2515 15# 24# 單通道448-1600 N
        相關(guān)產(chǎn)品

        *If you encounter any operation or quality problems of Qili constant flow pump, please contact us in time.

        *Baoding Qili constant flow pump Co., Ltd. guarantees 7 * 24 hours online.

        *Qili constant flow pump brand products have a one-year warranty and lifelong maintenance.

        *The product picture, model, data, function, performance, motor model, specification and other parameters of this website are for reference only. Qili constant flow pump can improve the above content. For more information, please refer to the product manual. Unless otherwise specified, the data contained in this website are the internal test results of Qili constant flow pump.
