typical application
Conventional flow delivery, food and beverage production dosage additives, process fermentation system for acid and alkali defoaming, laboratories, etc.
main feature
Adopt high-torque, maintenance-free brushless DC motor
With speed display, flow display, timing and quantitative functions.
The peristaltic pump can be used to control the speed, start-stop status, and running direction of the peristaltic pump through the external air interface.
With a full-speed button, the pipeline can be quickly filled and emptied.
RS485 communication protocol uses Modbus protocol, which is easy to debug and use.
Front panel display for easy operation
Conventional flow delivery, food and beverage production dosage additives, process fermentation system for acid and alkali defoaming, laboratories, etc.
main feature
Adopt high-torque, maintenance-free brushless DC motor
With speed display, flow display, timing and quantitative functions.
The peristaltic pump can be used to control the speed, start-stop status, and running direction of the peristaltic pump through the external air interface.
With a full-speed button, the pipeline can be quickly filled and emptied.
RS485 communication protocol uses Modbus protocol, which is easy to debug and use.
Front panel display for easy operation
| range of rotation | 40～600 rpm | Speed resolution | 1 rpm |
| Display method | 4-digit digital tube | External control input interface | 0-10kHz、0-5V、0-10V、4-20mA |
| Timing error | 0.1 second | Timing display resolution | 1 second |
| Timing value range | 1 second -99 hours 59 minutes 59 seconds | Operating mode | Speed type, flow type, timing type |
| External control function | Passive signal control: external control start-stop control and external control direction control | Communication function | RS485 communication (using general Modbus protocol) |
| Applicable power supply | AC 220V 50Hz | Normal load power | ＜200W |
| working environment | Temperature 0～40℃, relative humidity <80%, no condensation | Dimensions | 290×190×180（mm） |
| (Length×Width×Height) | |||
| Drive weight | 6.1kg (without pump head) | Protection level |
IP31 |
| Drive model | Applicable pump head | Applicable hose | Reference flow range (ml/min) |

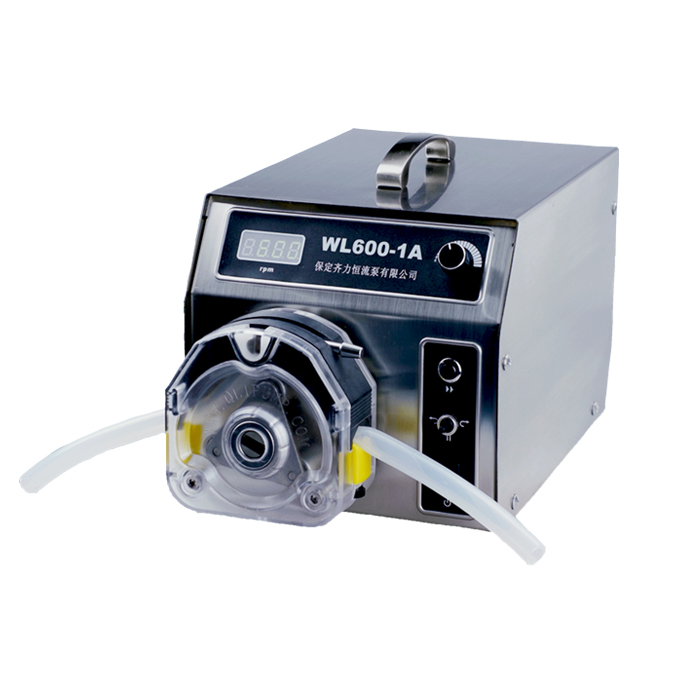

| WL600-1A | YZ1515×(1，2，3，4) | 13# 14# 16# 19# 17# 18# 25# | Single channel 2.8-2200 |
| YZ2515×(1，2，3，4) | 15# 24# | Single channel 64-1600 | |
| KZ25×（1，2） | 15# 24# 35# 36# |
Single channel 120-6000 |
